R140LS SMART

Operation Weight : 13790 KGs
Gross Power : 105 HP @ 2200 RPM
Bucket capacity : 0.665 m3

Overview

R140LS SMART

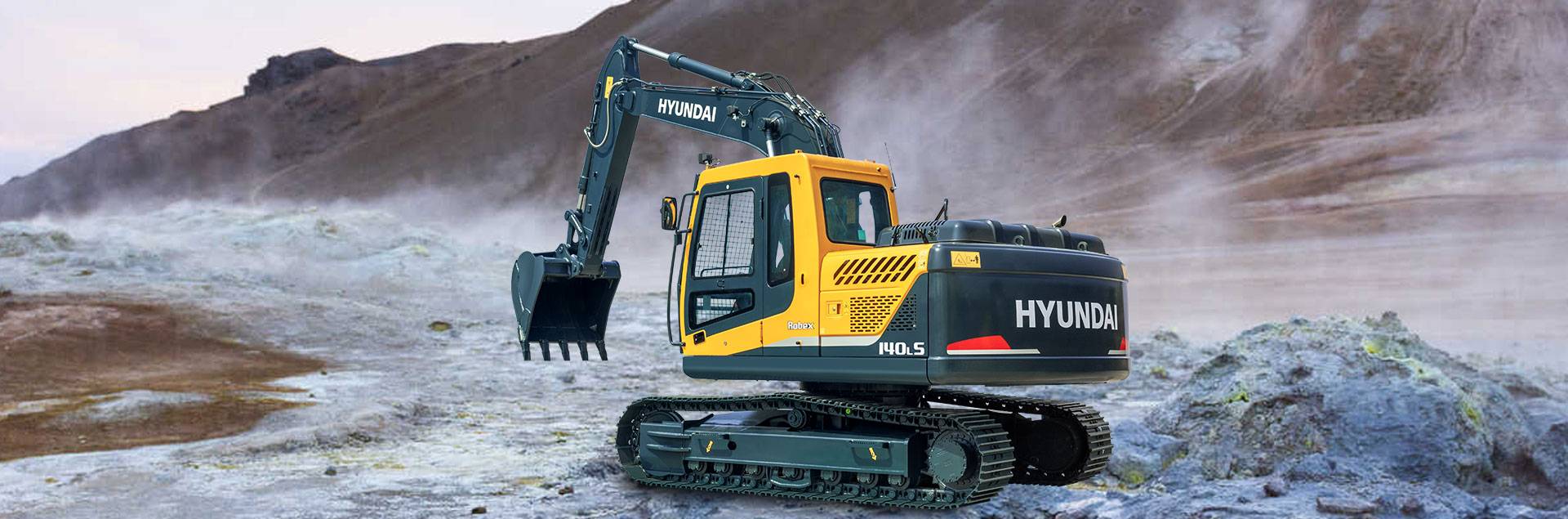

The R140LS Smart Hyundai excavator is built for maximum performance and ease-of-operations even in the most demanding environments. 9 series hydraulic circuit are designed to deliver high digging forces and fast loading cycles.


Specifications
Equipment UNIT R140LS SMART
Engine Model   Kirloskar 4R1040T
Gross Power hp @ rpm 105 @ 2200
Operating Weight Kgs 13790
Bucket Range cu.m 0.65-0.72
Swing speed rpm 12
Travel speed, high/ low km/hr 5.5/ 3.2
Max. digging reach on ground mm 7780
Max. digging Depth mm 5200
Tail swing radius mm 2330
Bucket digging force kgf. 11290

Feature
BEST-IN CLASS PERFORMANCE
Advanced CAPO system, Hydraulic flow summation, Regeneration system, Excellent digging forces
INCREASED MACHINE DURABILITY
Strengthened undercarriage, Proven upper structure, Durable components, Reinforced front attachment
OPERATOR COMFORT
Spacious cabin, Fully adjustable seat, Enhanced visibility, User friendly functionality

P MODE
Uses 100% engine power for mass production
S MODE
Uses 85% engine power for all work
E MODE
Uses 70% of engine power for reduced fuel consumption
BREAKER MODE
Sets pump flow to optimal leveland boosts efficiency

IMPROVED FUEL EFFICIENCY
New MCV, Improved MCU with auto deceleration function, Advanced CAPO system,Power & working mode options results in excellent fuel efficiency
PUMP FLOW CONTROL SYSTEM
Reduced pump flow during machine idle condition to minimize power loss.

STRONG & STABLE LOWER FRAME
Use of speciailzed advance steel plates & reinforced design for higher strength & durability.
RUGGED UNDERCARRIAGE
X frame provides excellent resistance to torsional bending to enhance structure life
REINFORCED IDLER GUIDE AREA
RELIABLE COMPONENTS
Swing system and travel system exclusively designed by Hyundai ensuring reliable performance.
HD FRONT STURUCTURE
Thicker plates, Casted component, Internalbaffle plate, Added wear plates on arm, Reinforced bucket

LEADING SERVICE INTERVAL
More efficient cooling system which extend service intervals, minimize operating cost and reduce machine down time.
