R220LS SMART PLUS

Operation Weight : 22,000 KGS
Gross Power : 148 HP @ 2000 RPM
Bucket capacity : 0.95 - 1.05 m3

Overview

R220LS SMART PLUS

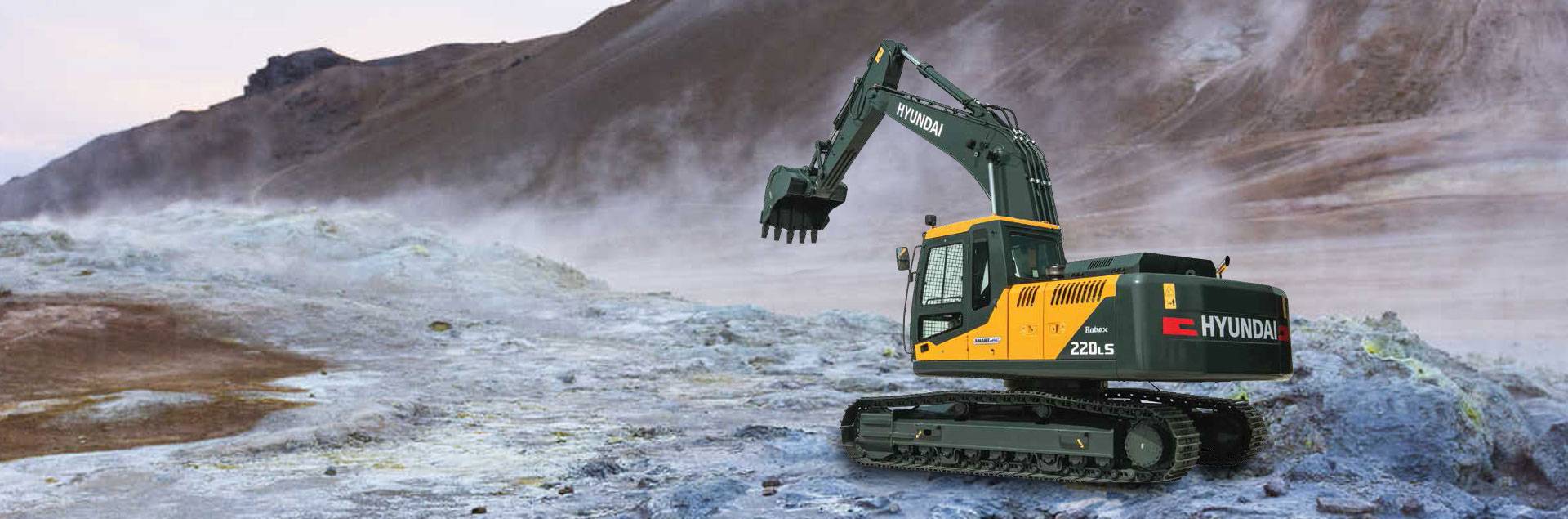

The 220LS SMART PLUS Hyundai excavator is the machine for operations where high performance is the ultimate objective. With a high performing engine, high stability on uneven surfaces, high operating weight, bigger buckets and improved operator comfort and convenience, this machine promises maximum productivity.


Specifications
Equipment UNIT 220LS SMART
Engine Model   Cummins 6BTAA5.9C
Gross Power hp @ rpm 148 @ 2000
Operating Weight Kgs 22200
Bucket Range cu.m 0.87-1.2
Swing speed rpm 11
Travel speed, high/ low km/hr 5.3/ 3.4
Max. digging reach on ground mm 9500
Max. digging Depth mm 6220
Tail swing radius mm 2830
Bucket digging force kgf. 15500

Feature
BEST-IN CLASS PERFORMANCE
• Advanced CAPO system• Hydraulic flow summation• Regeneration system• Excellent digging forces
INCREASED MACHINE DURABILITY
• Strengthened undercarriage• Proven upper structure• Forged ring body• Heavy duty front attachment
OPERATOR COMFORT
• Spacious cabin• Fully adjustable seat• Enhanced visibility• User friendly functionality
SIMPLIFIED MAINTENANCE
• Easy serviceability• Extended maintenance• Large capacity fluid tank• Low life cycle cost
IMPROVED FUEL EFFICIENCY
• New ECO mode• Fuel saving kit• Electro hydraulic system• Auto deceleration system• Efficient breaker mode
PARTS & SUPPORT
• Hyundai genuine parts• Max parts availability• On-site product support• Hi-Track (RMS - Optional)

H MODE
Maximum Power, Fast Cycle time
S MODE
Balance between power andfuel efficiency
ECO MODE
Better fuel efficiency
BREAKER MODE
Sets pump flow to optimal leveland boosts efficiency

FUEL SAVING KIT
Monitor undue load and cut down losses, Provides better fuel efficiency
EXCLUSIVE BREAKER MODE
Excellent fuel saving due to exclusive power for breaker operation


LEADING SERVICE INTERVAL
More efficient cooling system which extend service intervals, minimize operating cost and reduce machine down time.
