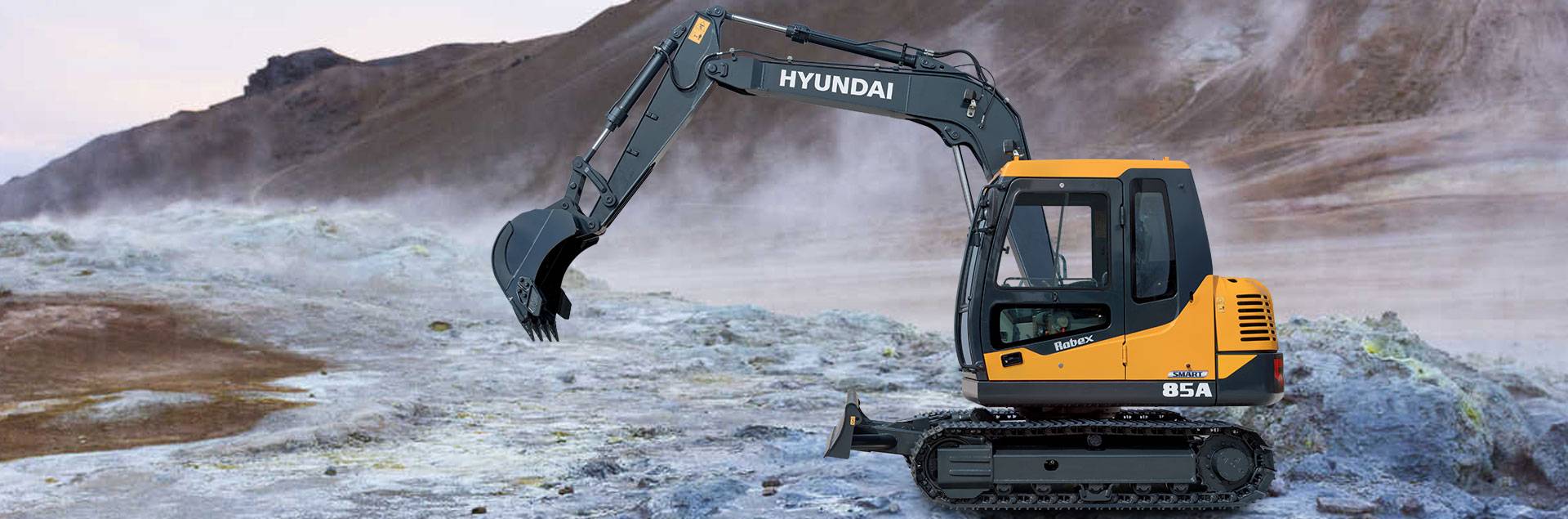

R85A SMART

Operation Weight : 8000 kgs
Gross Power : 76HP @ 2200 rpm
Bucket capacity : 0.32 - 0.70 m3

Overview

R85A SMART

The 85A SMART Hyundai excavator is the ideal choice for agricultural and construction-related earth-moving activities. It comes with best-in-class technical specifications and features so you can get maximum work done in minimum time and with minimum fuel consumption. Moreover, you can customize the machine with different attachments to suit your requirement


Specifications
Equipment UNIT 85A SMART
Engine Model   Kirloskar 4R1040NA
Gross Power hp @ rpm 76 @ 2200
Operating Weight Kgs 8000
Bucket Range cu.m 0.32- 0.70
Swing speed rpm 12
Travel speed, high/ low km/hr 4.8/ 3.0
Max. digging reach on ground mm 6190
Max. digging Depth mm 4150
Tail swing radius mm 1750
Bucket digging force kgf. 4500

Feature
BEST-IN CLASS PERFORMANCE
• Advanced CAPO system• Hydraulic flow summation• Regeneration system• Excellent digging forces• Advanced CAPO system• Hydraulic flow summation• Regeneration system• Excellent digging forces
INCREASED MACHINE DURABILITY
• Strengthened undercarriage• Proven upper structure• Durable parts• Reinforced front attachment
OPERATOR COMFORT
• Spacious cabin• Fully adjustable seat• Enhanced visibility• User friendly functionality
SIMPLIFIED MAINTENANCE
• Easy serviceability• Extended maintenance• Large capacity fluid tank• Low life cycle cost
IMPROVED FUEL EFFICIENCY
• Electro mechanical control system• One touch deceleration• Auto deceleration system• Efficient breaker mode
PARTS & SUPPORT
• Hyundai genuine parts• Max parts availability• On-site product support• Remote management system (Hi-Track)

H MODE
Maximum Power, Fast Cycle time
S MODE
Balance between power andfuel efficiency
L MODE
Better fuel efficiency
BREAKER MODE
Sets pump flow to optimal leveland boosts efficiency

IMPROVED FUEL EFFICIENCY
• Improved MCU with auto deceleration function• Advanced hydraulics• Increased return line diameter by 3/4 11

CASTED IDLER
Built to withstand high shock and impact load.
DURABLE FRONT STRUCTURE
Use of specialized advance steel plates and reinforced design for higher strength & durability
BALANCED SWING SYSTEM
Swing gear uses a ball bearing to absorb radial and thrust load

BENEFITS OF USING GENUINE HYUNDAI PARTS AND LUBRICANTS
• Genuine Hyundai Parts meet strict specifications and standards in Chemistry, Microstructure and Tensile Strength.• Benefit from the continuous improvements & advancements made by Hyundai's technical team• Improved performance of hydraulics and engine components• Enjoy greater productivity with higher uptime• Higher resale values• Reduced oil consumption and unexpected breakdowns• Enhanced component life

EXTENDED MAINTENANCE INTERVAL
Enhanced filtration system extends hydraulic life upto 5000 hrs and Engine oil life upto 500 hrs, which reduces the maintenance cost
